Sub ETZ

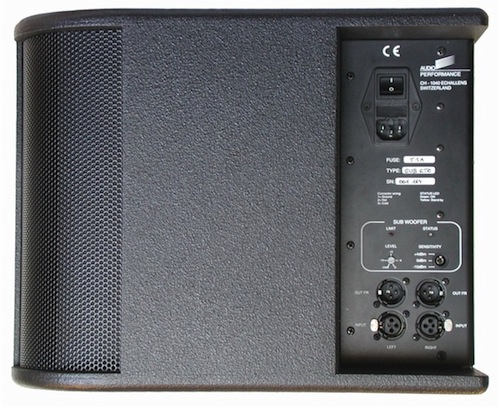

The SUB ETZ-amp is a very compact band-pass subwoofer designed to extend the LF frequency range and power bandwidth of Audio Performance Euros, or Zephiros monitor loudspeakers.The unit contains a 8" long excursion, low distortion, low frequency cone driver mounted in a band-pass enclosure.The 120 W amplifier module features left and right input for mono applications and stereo left and right HP filtered outputs to feed the Tracios or Zephiros Monitor.Sensitivity is adjustable to -10dB, 0dB, +4dB. The output level can be set from 0dB to -24dB via a potentiometer.audio-performance route de cossonay 36c 1040 echallens switzerlandIn absence of modulation, a standby device controls electronically the power amplifier and reduces the power consumption to the minimum, the system detects automatically an audio signal and instantaneously restores the power.The SUB ETZ-amp wood enclosure (birch multiply) is precisely manufactured using the Audio Performance time-proven technique, the outer surface is hard-wearing painted (black, white or any RAL colour).The aesthetic appeal is not left behind a carefully studied shape with a recessed connectors panel offers the possibility to place the subwoofer on any of it's face.Alta Efficienza Bassa DistorsioneCurva di risposta molto estesaControllo Elettronico
The SUB ETZ-amp is a very compact band-pass subwoofer designed to extend the LF frequency range and power bandwidth of Audio Performance Euros, or Zephiros monitor loudspeakers.The unit contains a 8" long excursion, low distortion, low frequency cone driver mounted in a band-pass enclosure.The 120 W amplifier module features left and right input for mono applications and stereo left and right HP filtered outputs to feed the Tracios or Zephiros Monitor.Sensitivity is adjustable to -10dB, 0dB, +4dB. The output level can be set from 0dB to -24dB via a potentiometer.audio-performance route de cossonay 36c 1040 echallens switzerlandIn absence of modulation, a standby device controls electronically the power amplifier and reduces the power consumption to the minimum, the system detects automatically an audio signal and instantaneously restores the power.The SUB ETZ-amp wood enclosure (birch multiply) is precisely manufactured using the Audio Performance time-proven technique, the outer surface is hard-wearing painted (black, white or any RAL colour).The aesthetic appeal is not left behind a carefully studied shape with a recessed connectors panel offers the possibility to place the subwoofer on any of it's face.Alta Efficienza Bassa DistorsioneCurva di risposta molto estesaControllo Elettronico
Specifications
-
{tab= Specifiche Acustiche |grey} Risposta in frequenza.................... 55 Hz - 180 Hz Max SPL........................................118 dB Amplificatori....................................120 W Crossover (frequenza di taglio).........180 Hz (attivo) a 24 dB per ottava {tab= Trasduttori |grey} Gamma bassa.............................. 1 altoparlante da 8” a lunga escursione e bassa distorsioneImpedenza nominale..................... 10 Kohms bilanciata elettronicamenteConnettori................................... IN/OUT(linking): Neutrik XLR(1:terra, 2:positivo, 3:negativo)Altro....................................................alimentazione 3 pin maschio a norma IEC 110 V - 230 V 100 VA

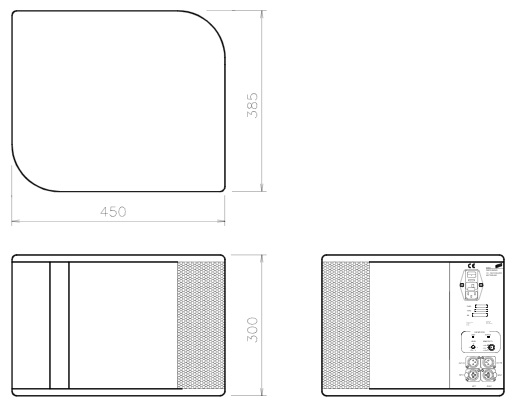

{tab= Specifiche Meccaniche |grey}Cabinet.......................................... bass-reflex Finitura cabinet..............................angoli stondati, laccato nero o qualsiasi altro colore RAL su richiesta Misura cabinet.................................450 x 300 x 385 mmGriglia di protezione....................... griglia metallica forata da 1,6 mm di acciaio con copertura in spugna color carbone Peso........................................... 14 Kg
{/tabs}
-
{tab= Specifiche Acustiche |grey} Risposta in frequenza.................... 55 Hz - 180 Hz Max SPL........................................118 dB Amplificatori....................................120 W Crossover (frequenza di taglio).........180 Hz (attivo) a 24 dB per ottava {tab= Trasduttori |grey} Gamma bassa.............................. 1 altoparlante da 8” a lunga escursione e bassa distorsioneImpedenza nominale..................... 10 Kohms bilanciata elettronicamenteConnettori................................... IN/OUT(linking): Neutrik XLR(1:terra, 2:positivo, 3:negativo)Altro....................................................alimentazione 3 pin maschio a norma IEC 110 V - 230 V 100 VA
{tab= Specifiche Meccaniche |grey}Cabinet.......................................... bass-reflex Finitura cabinet..............................angoli stondati, laccato nero o qualsiasi altro colore RAL su richiesta Misura cabinet.................................450 x 300 x 385 mmGriglia di protezione....................... griglia metallica forata da 1,6 mm di acciaio con copertura in spugna color carbone Peso........................................... 14 Kg{/tabs}
